Your PATHWAYS to rapid sample exchange

We have the solution

Sample exchange time can be reduced through careful design of a system such that either:

i) The system mass to be cooled is minimised, thereby minimising the total cooldown time or

ii) Designing the system in such a way that the majority of the system (particularly the magnet) remains cold during sample exchange

To be useful for a wide range of experiments, the approach taken must provide sufficient experimental access to the sample as well as sample temperatures comparable to the base temperature of the cryostat. Whatever the requirements of your experiment may be, we have a solution that will allow samples to be exchanged quickly and efficiently.

Rapid cooling of cryogenic systems

Compact cryostats, particularly those used for low-temperature optical measurements can be designed in such a way that the mass to be cooled is minimised, making it possible to rapidly thermal cycle both the sample and cryostat.

For systems cooled using liquid cryogens (nitrogen or helium), such as the MicrostatHe, it is possible to cool the sample from room temperature to base in around 10 minutes.

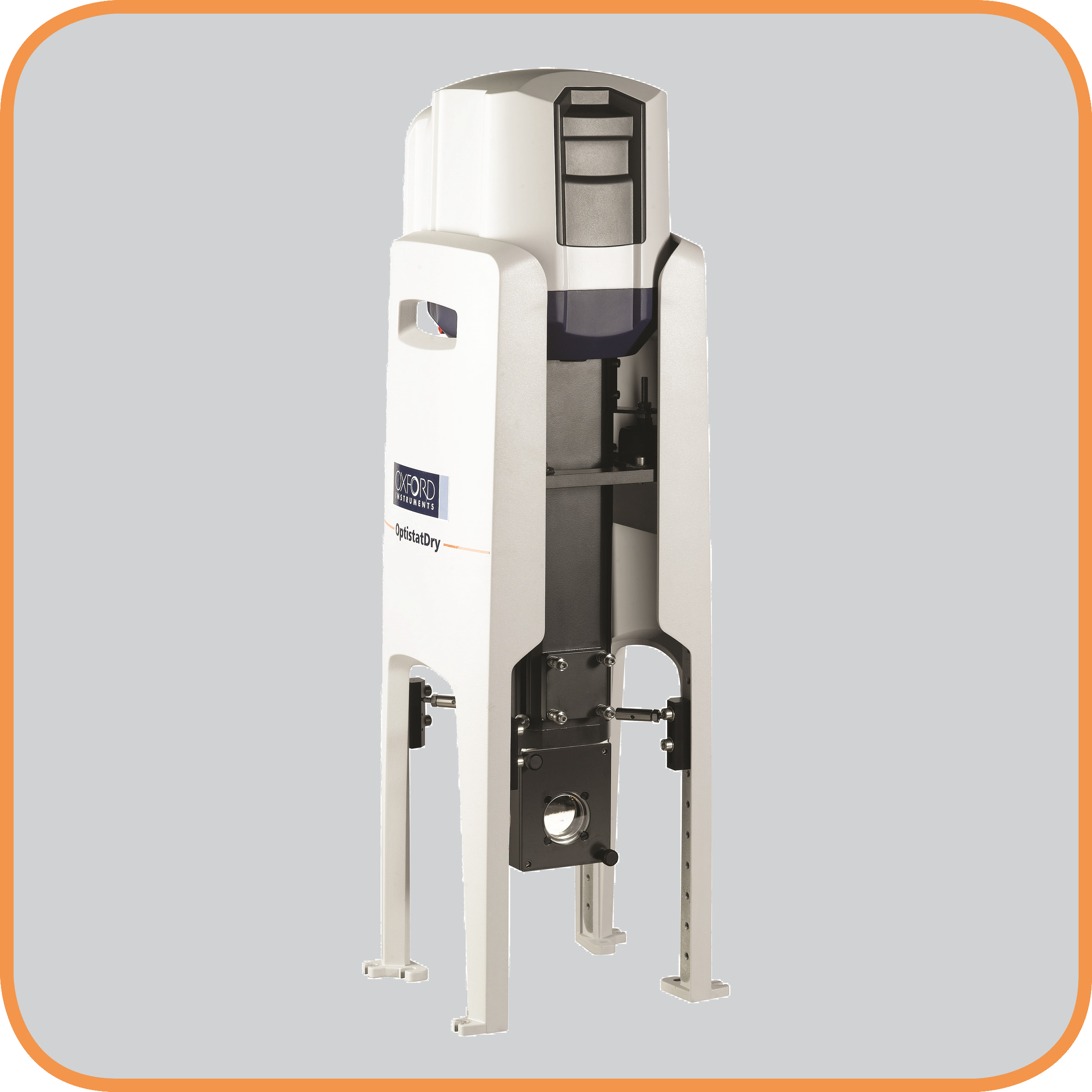

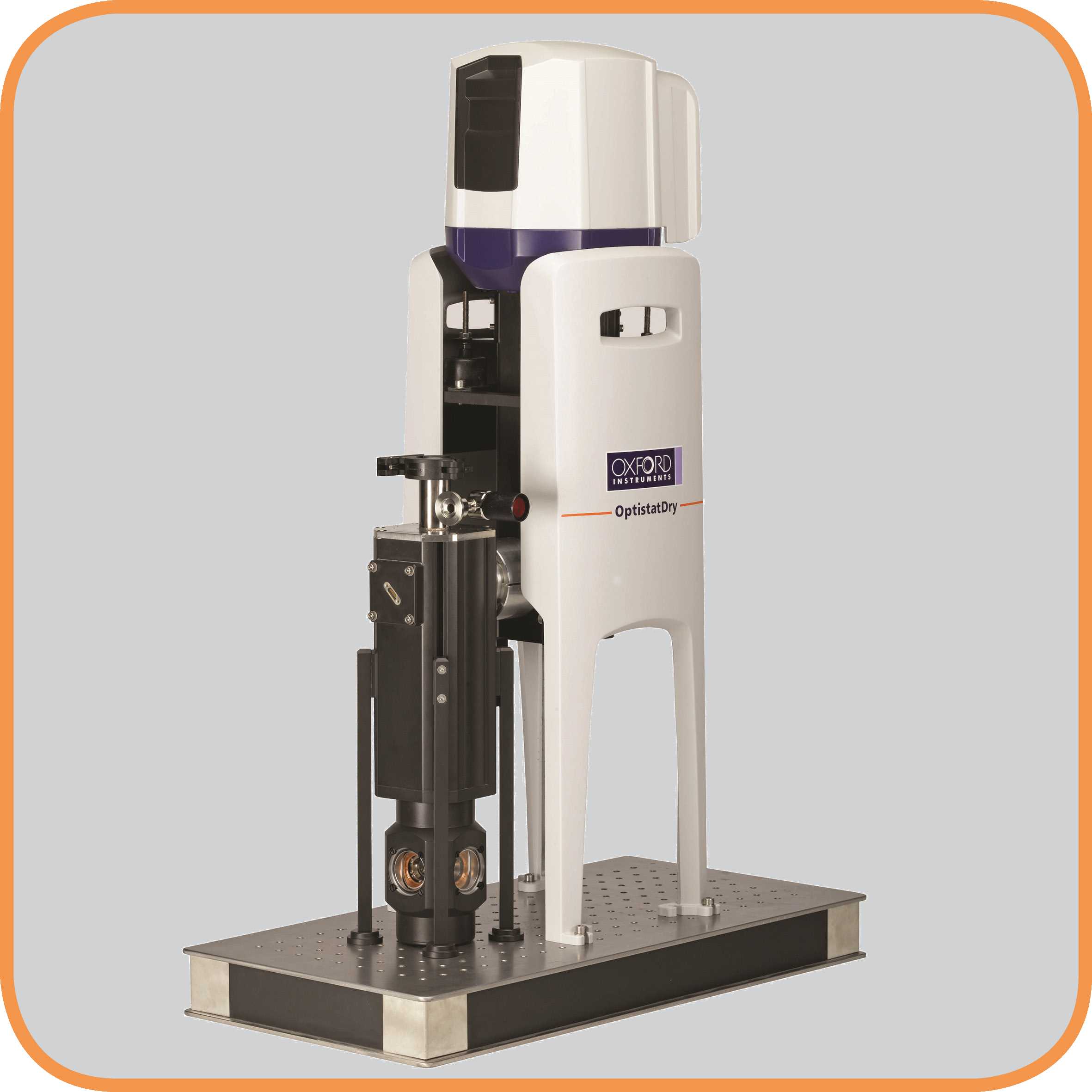

Cryofree optical systems, such as the OptistatDry BLV, where cooling is provided by a mechanical cooler, take longer to cool, but are still able to cool a sample to 4 K in a few hours.

Read an application note.

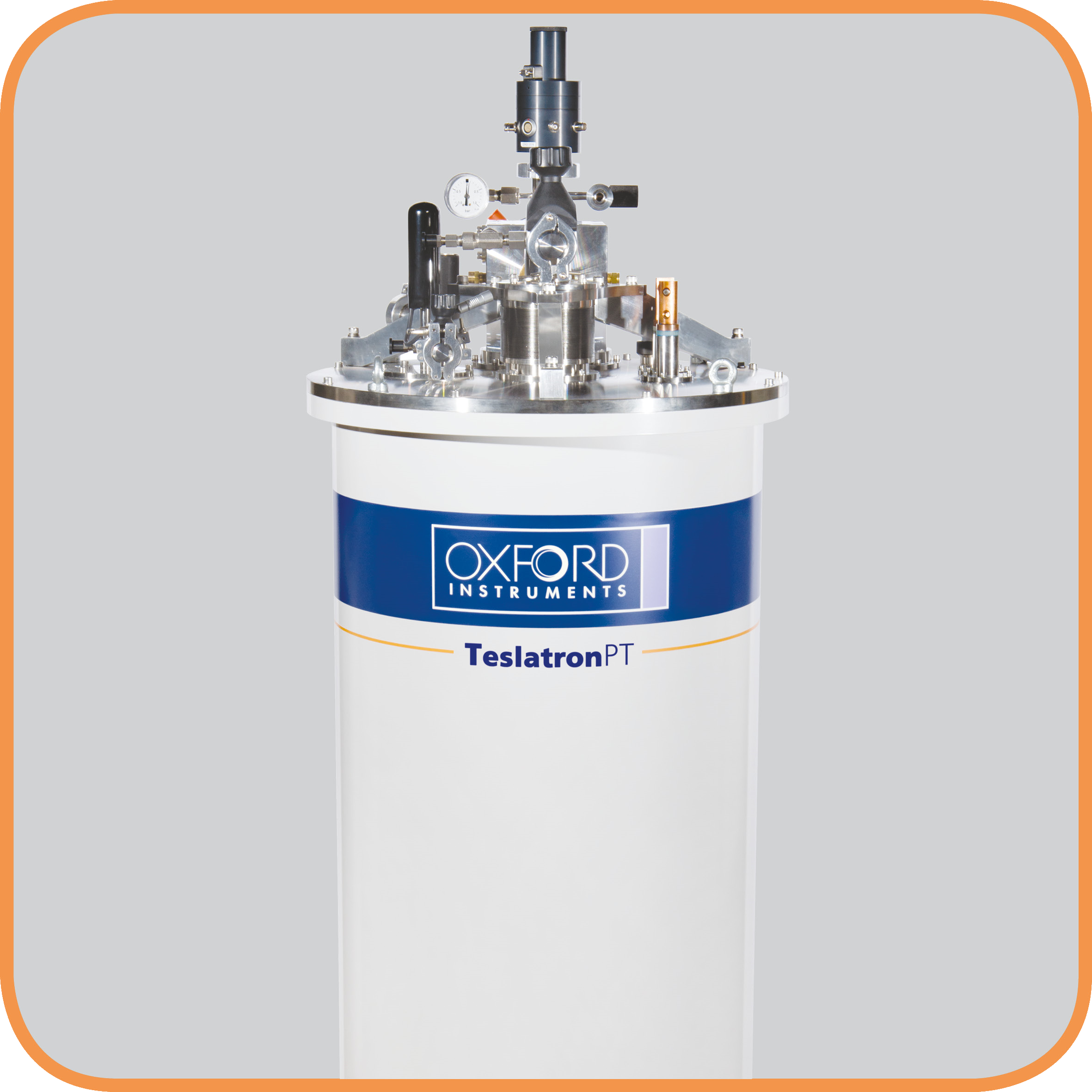

Sample exchange using a demountable probe

A probe-based solution can allow for quick sample cooldown, while avoiding the need to completely warm the system. Experimental services are installed on the probe and a sample holder enables a sample to be quickly and simply exchanged before the probe is loaded into the cryostat.

With a typical probe diameter of 50 mm this does place an upper limit on the experimental services that can be installed on a probe, but these probes bring versatility to a measurement setup, allowing different probes to be tailored to suit a specific experiment as well as access a wide range of temperatures from room temperature to:

• 4.2 K using liquid helium
• 1.5 K using a helium cooled variable temperature insert (VTI)

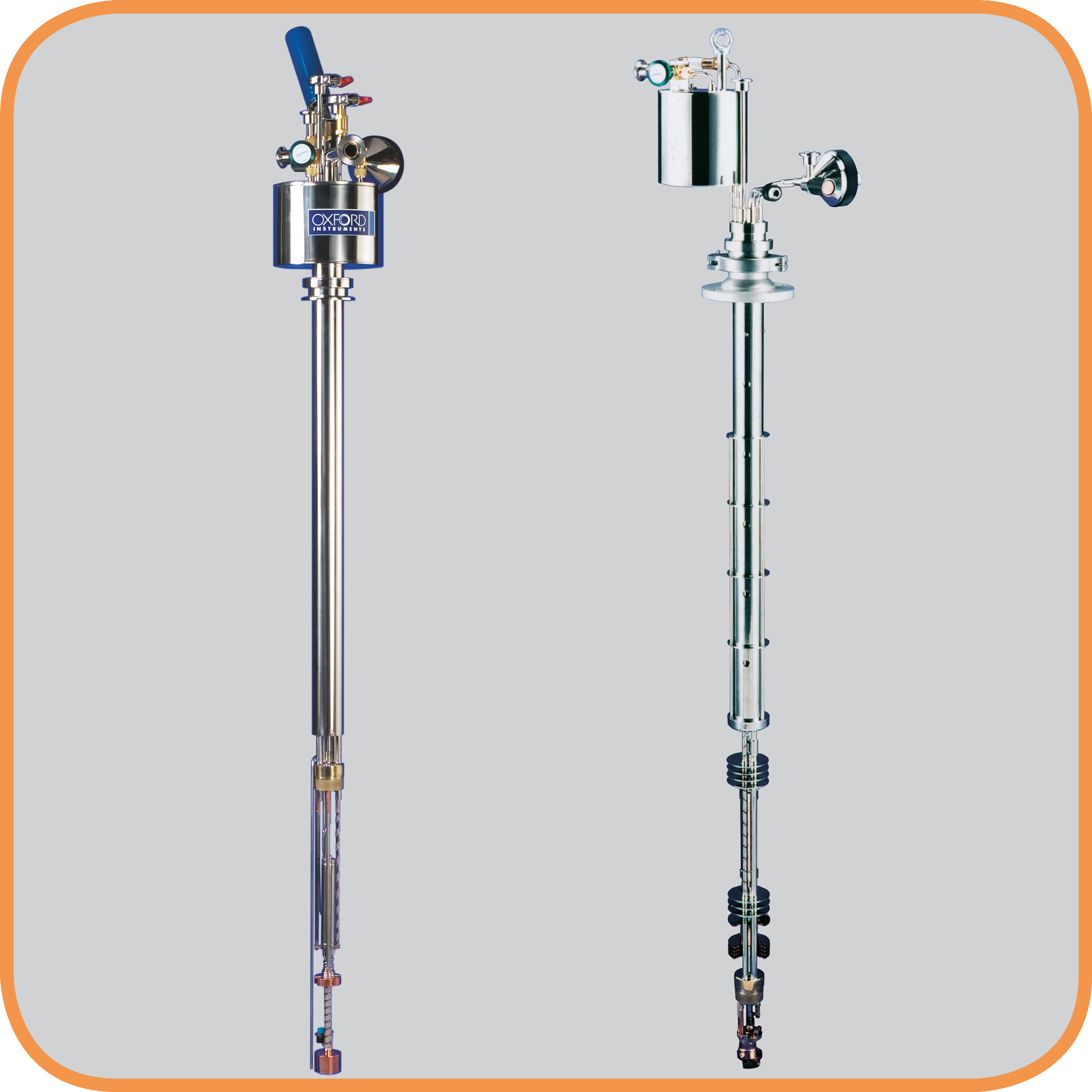

• 300 mK using a 3He system
• 50 mK and lower using a dilution refrigerator insert

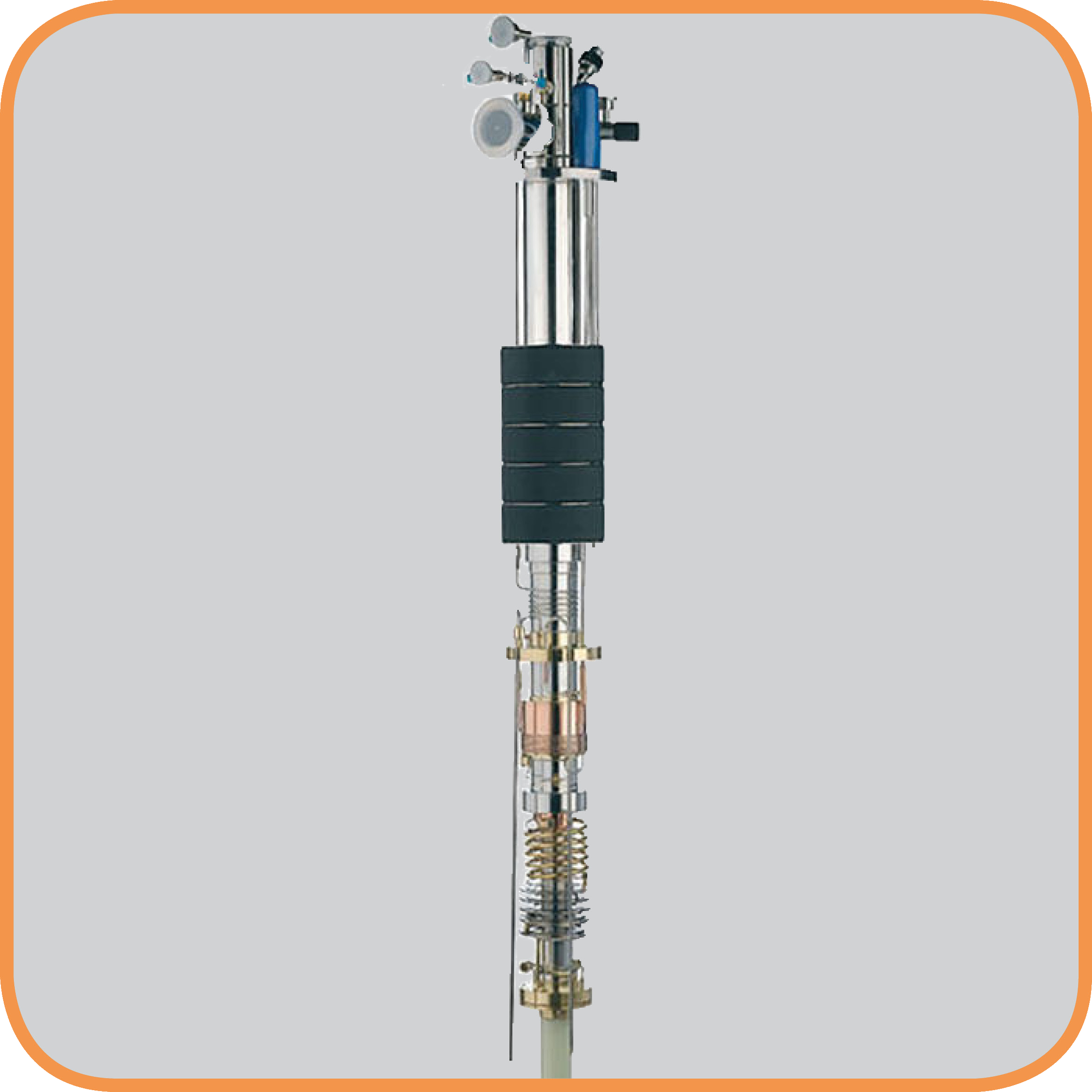

Temperatures below 20 mK are possible using the KelvinoxTLM , a top-loading into mixture dilution refrigerator. In this arrangement the probe and sample are loaded directly into the mixing chamber – allowing the sample to be in intimate contact with the 3He/4He mixture. Constructing the mixing chamber from plastic means that this is an ideal solution for measurements requiring swept magnetic fields and ultra-low temperatures, where eddy current heating can be an issue.

Contact us for more information



姓名 *

所属組織 *

E-mailアドレス *

住所

電話番号

メッセージ

ご興味のある分野をお選びください（複数選択可）。

下記より選択してください。 Toggle Dropdown

• 下記より選択してください。
• 先進製造技術
• 自動車・航空宇宙
• ケミカル・触媒
• 金属・合金・複合材料・セラミック
• ポリマー（高分子）
• 発電・蓄電（バッテリー）
• 農業・食品
• 法科学・環境
• 地質・岩石学・鉱業
• バイオイメージング・ライフサイエンス
• 製薬
• 量子技術
• フォトニクス・光工学
• 半導体・マイクロエレクトロニクス・データストレージ
• 研究・基礎科学

OIニュースレターを希望します。

※当社のメールマガジンです。当社の新製品、ウェビナー、展示会などの最新情報をお届けしています。

このフォームを送信することにより、オックスフォード・インストゥルメンツが個人情報の取扱いに記載された方法で入力した個人データを処理することに同意します。

Application note

Application note

Sample exchange using a demountable sample puck

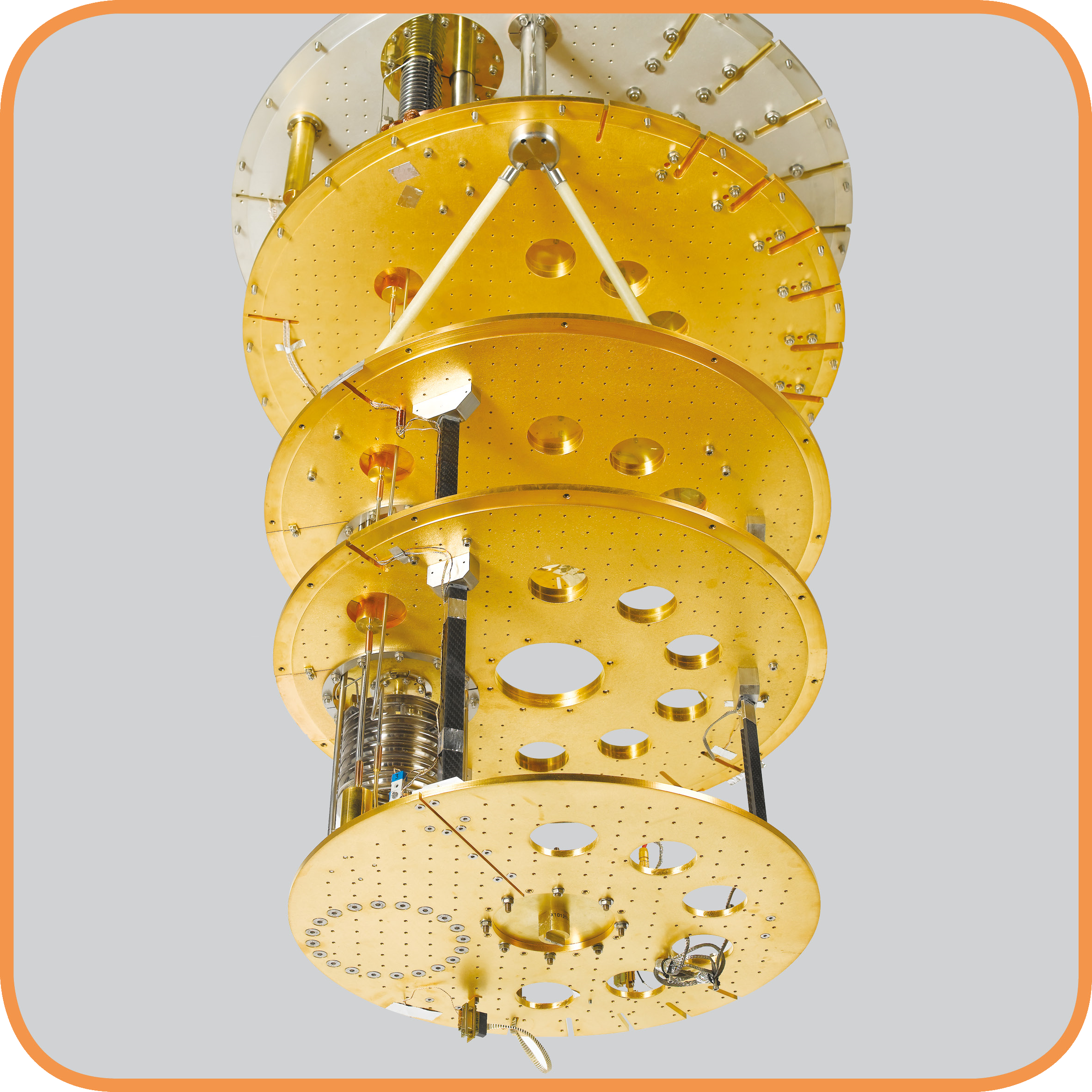

One of the key advantages of a Cryofree dilution refrigerator is that with the larger plate diameters comes an increase in the surface area available for the heat sinking of experimental services running to the sample.  The removal of the baths of liquid cryogens also provides access to the mixing chamber (sample) plate from below.
